GIULIANO SANTAGATA & C SAS

Caprari Submersible Pump E6XD – E6XPD Series - 6" - Pump Only, Motor Not Included

Name: Caprari Submersible Pump E6XD – E6XPD Series - 6" - Pump Only, Motor Not Included
Brand: GIULIANO SANTAGATA & C SAS
SKU: 682709
Price: 964.0 EUR
Availability: InStock

Caprari Submersible Pump E6XD – E6XPD Series - 6" - Pump Only, Motor Not Included

€964,00

Sale Sold out

Tax included. Shipping calculated at checkout.

🚚Fast shipping throughout Italy 🔒Secure payments with protected methods 📞Customer support before and after purchase

Type E6XD35-4/9 - V E6XD40-4/8 - V E6XD40-4/10 - V E6XD40-6/10 - W E6XD40-6/16 - V E6XD50-6/7 - V E6XPD52-6/6K - W E6XPD52-6/9K - V

Product variants

Quantity

The Caprari E6XD series submersible hydraulic end is designed for pumping and moving water in agricultural, civil, industrial, and water supply applications.

When you see a 4 in the code, for example: E6XD40-4/10, it means that the hydraulic end can be coupled with both a 6" motor and a 4" motor.

The supply includes only the hydraulic part of the pump and is therefore sold without a submersible motor. The product must be paired with a compatible submersible motor, purchased separately.

The E6XD series is designed to ensure reliability, efficiency, and continuous operation even under demanding conditions. The multi-stage configuration allows for selecting the most suitable solution for specific flow rate and head requirements.

Main Features

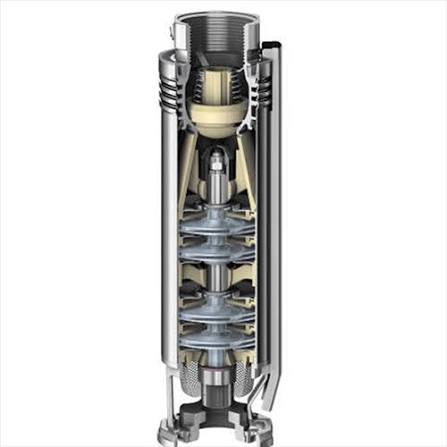

Multi-stage submersible hydraulic end
Caprari E6XD series
Supply without submersible motor
Designed for well installations and water lifting applications
Configurations available based on flow rate and head requirements
High reliability and wear resistance
Can be paired with compatible submersible motors

Construction Materials

The hydraulic ends of the E6XD series are made with selected materials to ensure mechanical strength, durability, and long-term reliability.

Depending on the configuration and specific model, the construction may include:

Body and main components: cast iron and/or treated metal materials
Impellers: metallic materials resistant to wear and corrosion
Diffusers: high-strength technical materials
Shaft: stainless steel
Fastening components: stainless steel
Wear rings and internal components: selected materials to increase pump life
Seals: elastomers and technical materials suitable for contact with water

Note: construction materials may vary based on the pump model and configuration. For exact characteristics, refer to the technical documentation for the selected model.

Technical Data

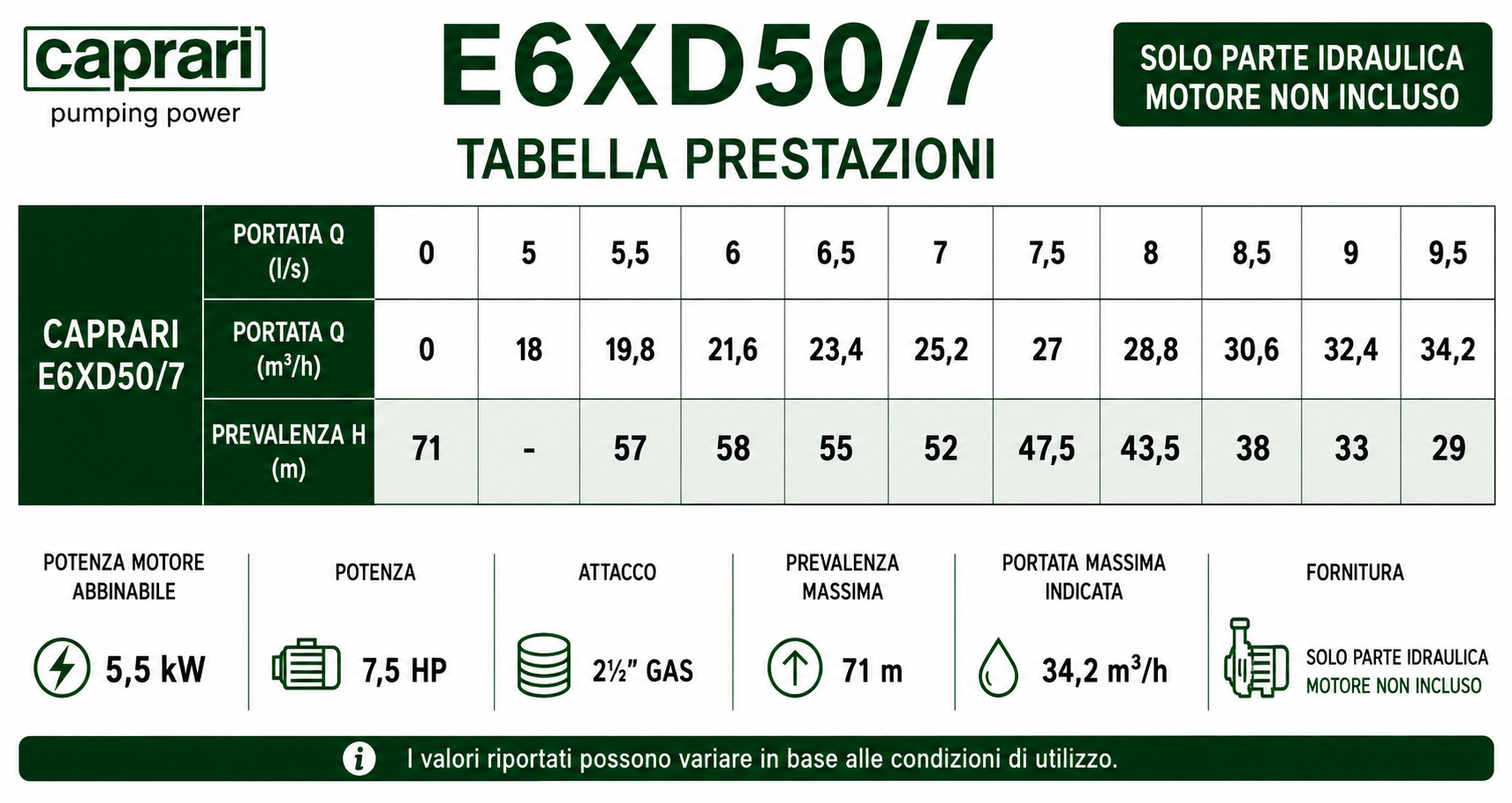

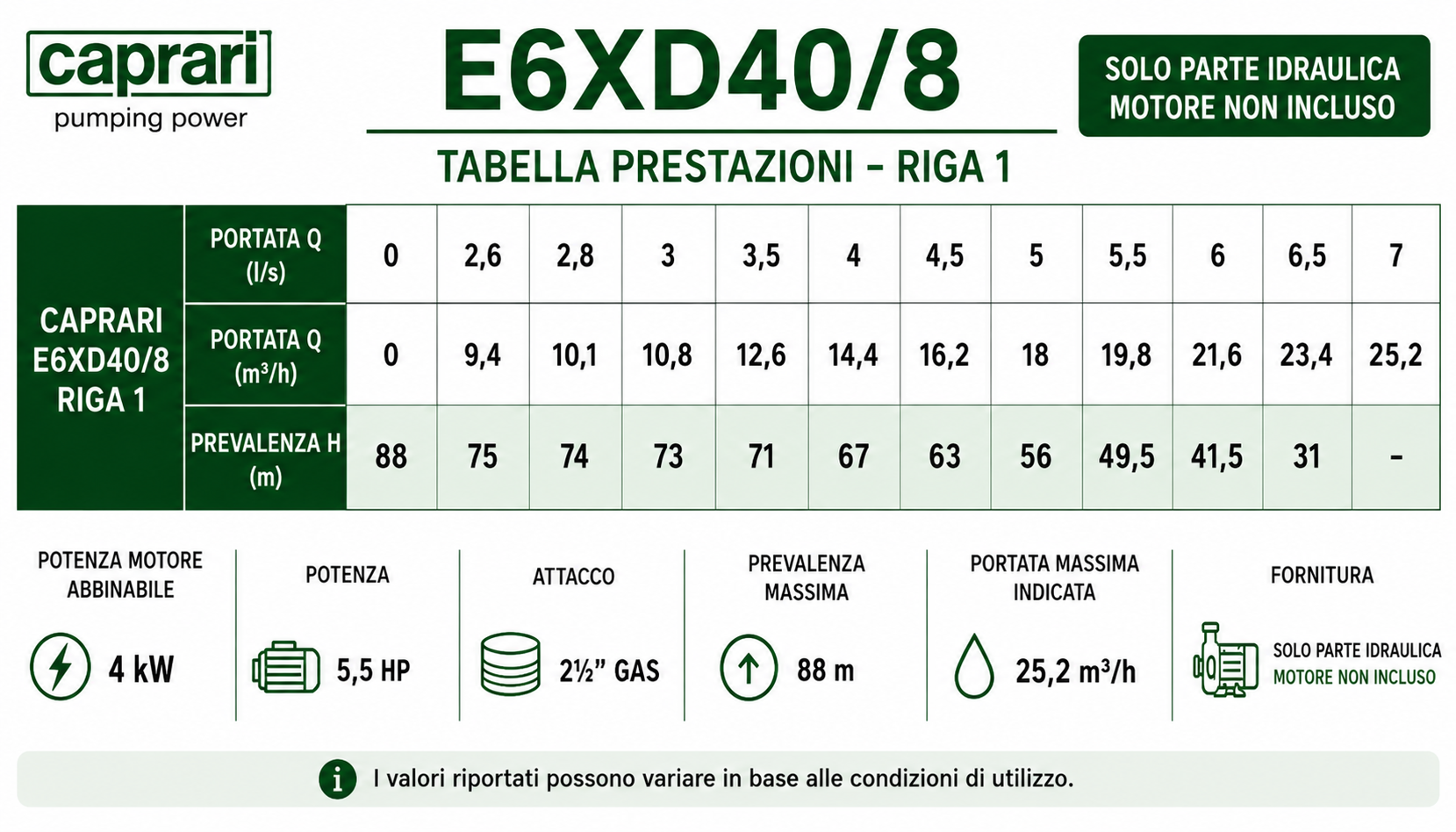

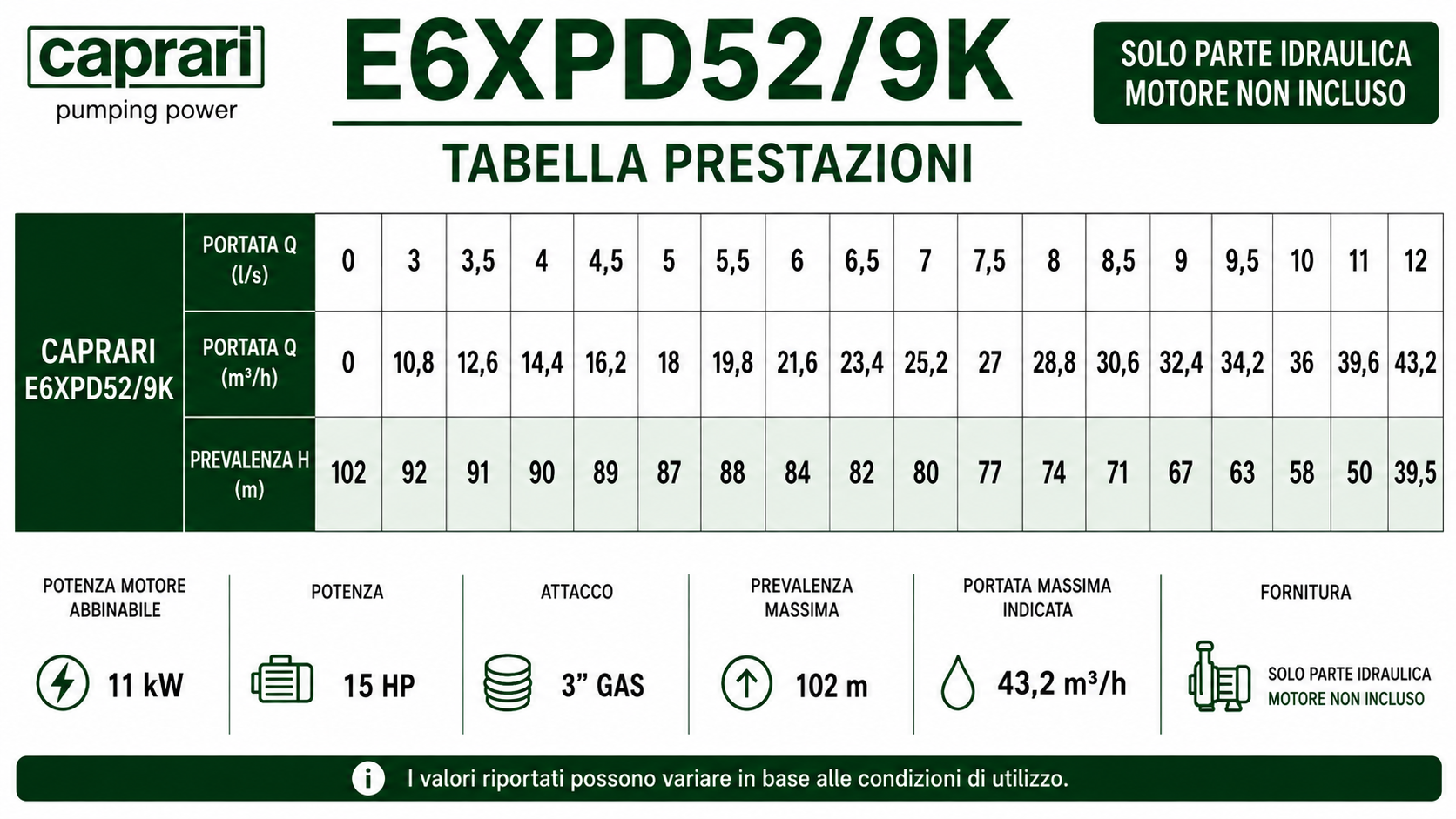

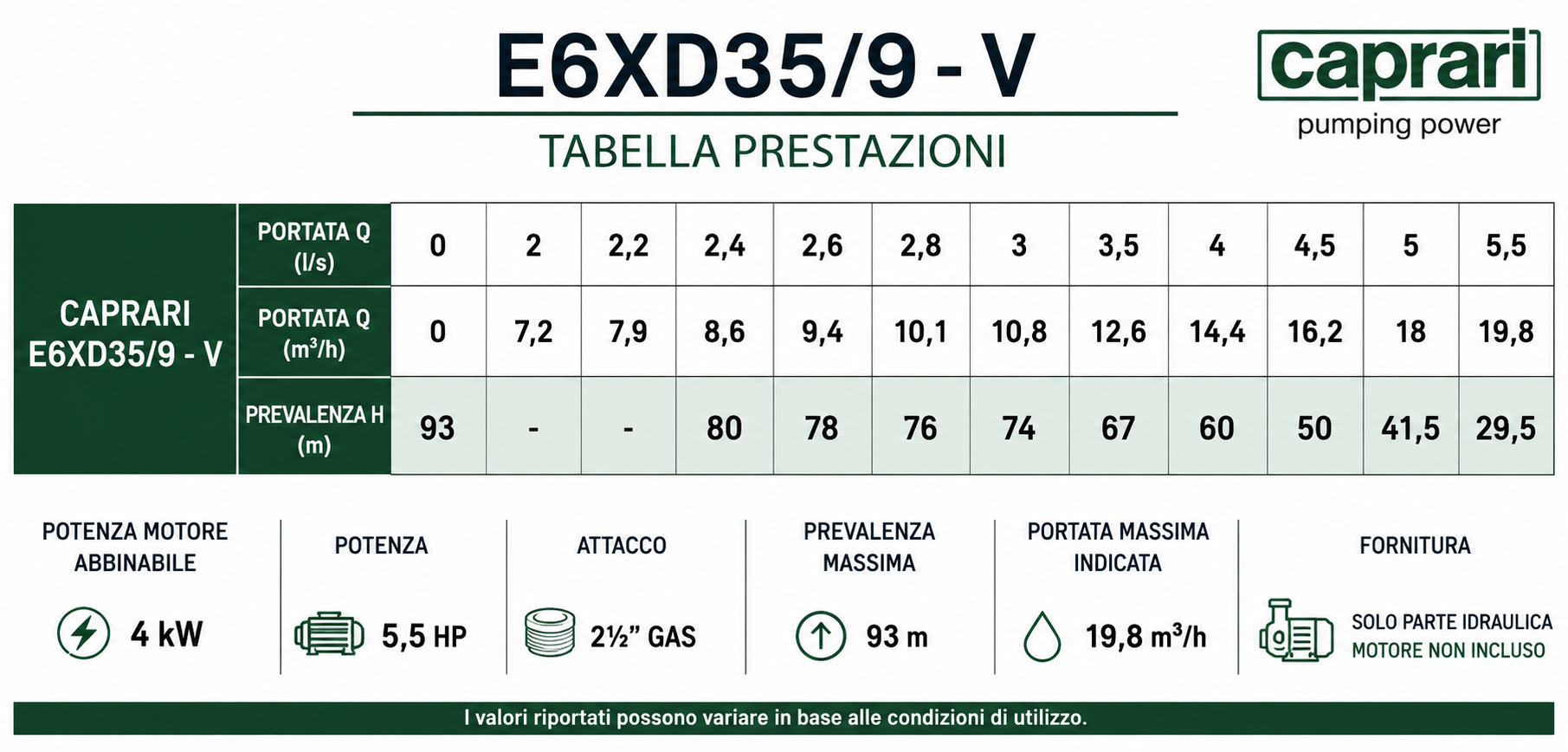

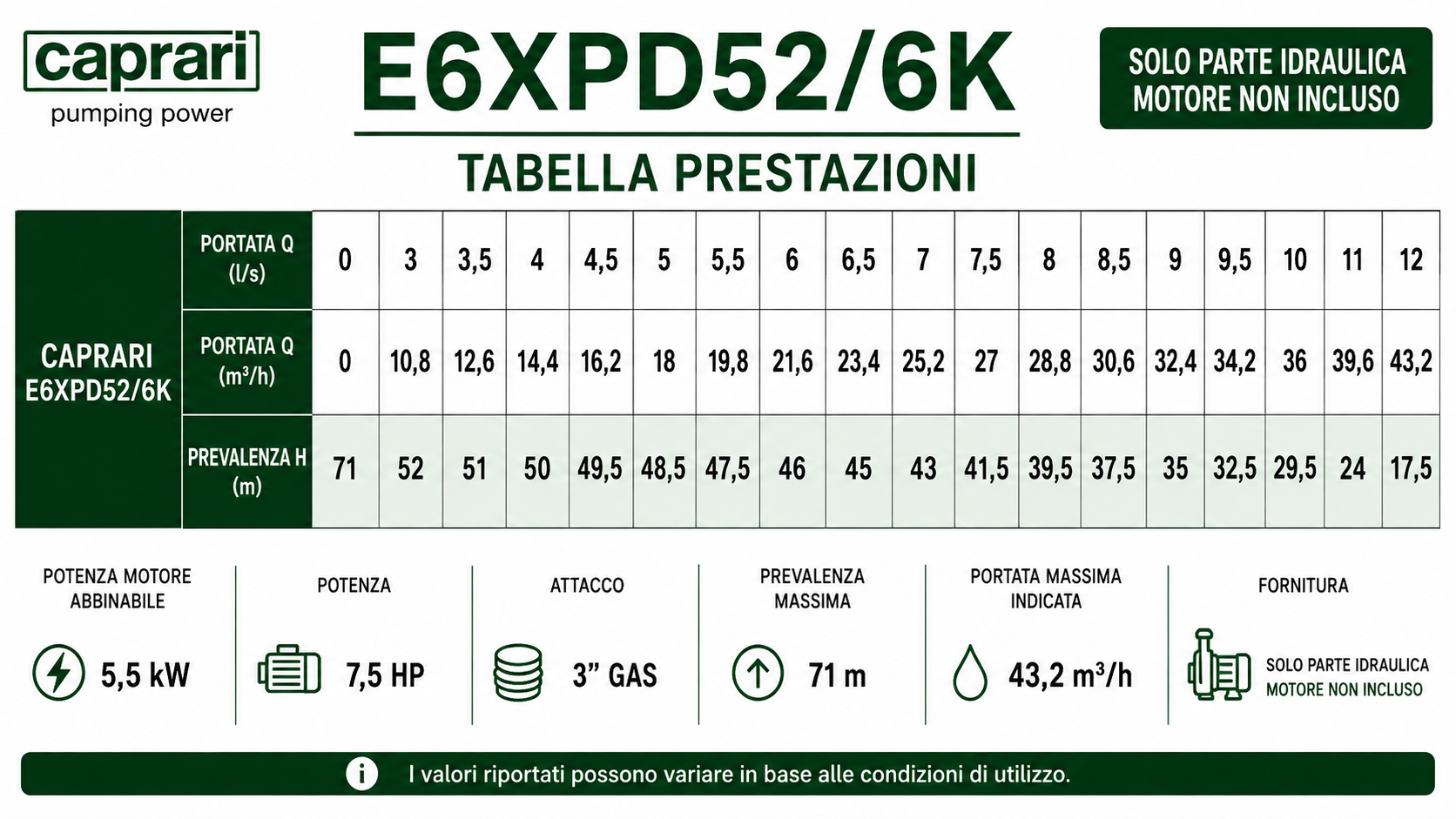

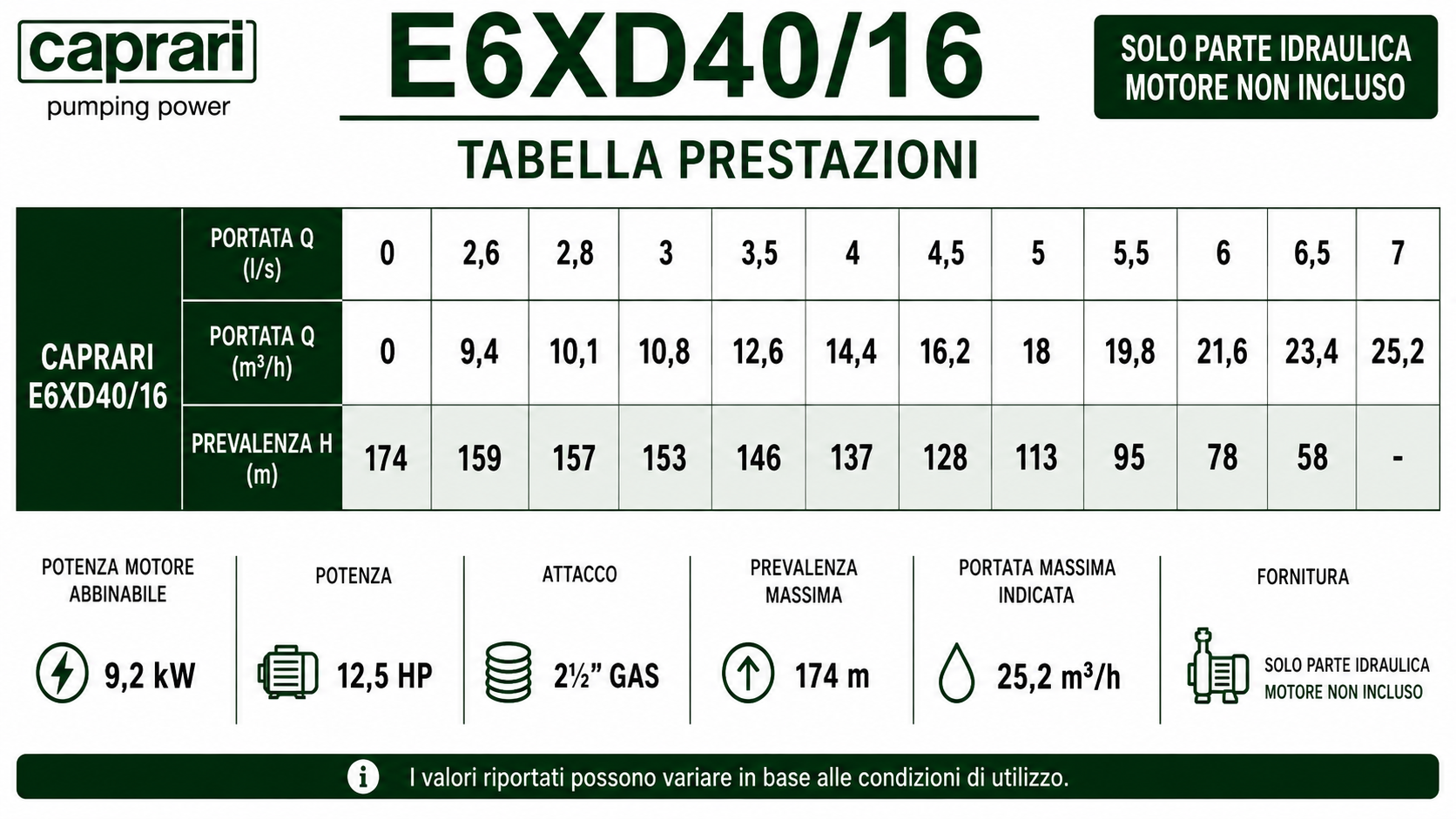

Below you can consult the table with the specific characteristics of the selected model, including flow rate, head, number of stages, required power, and other technical specifications.

Important: Supplied without motor

⚠️ This product includes only the hydraulic end of the Caprari E6XD series pump. The submersible motor is not included in the supply.

Before purchasing, it is necessary to verify the correct compatibility between the selected hydraulic end and the submersible motor to be used.

Applications

The Caprari E6XD series hydraulic end is suitable for applications such as:

Agricultural irrigation
Water supply
Water lifting systems
Wells and boreholes
Civil and industrial systems
Water pressurization and distribution systems
Other applications compatible with the characteristics of the selected pump
