Caprari Submersible Pump E4XD - E4XPD Series - 4" - Pump Only Without Motor

Name: Caprari Submersible Pump E4XD - E4XPD Series - 4" - Pump Only Without Motor
Brand: GIULIANO SANTAGATA & C SAS
Price: 380.0 EUR
Availability: InStock

Caprari Submersible Pump E4XD - E4XPD Series - 4" - Pump Only Without Motor

€380,00

Sale Sold out

Tax included. Shipping calculated at checkout.

🚚Fast shipping throughout Italy 🔒Secure payments with protected methods 📞Customer support before and after purchase

Type E4XED50-4/12 - V E4XED50-4/16 - W E4XED50-4/8 - W E4XPD50 - 4/22 - W E4XPD60-4/13 - W E4XED40-4/23 - W E4XED35-4/27 - W E4XED40-4/12 - W

Product variants

Quantity

The Caprari E4XD series submerged hydraulic end is a solution designed for lifting and handling water in wells, irrigation systems, and civil and industrial applications.

The pump features a multistage construction, designed to ensure reliability, efficiency, and consistent performance under various operating conditions.

⚠️ CAUTION: The product is supplied exclusively as a hydraulic end. The submersible motor is NOT included in the supply.

Main Features

Multistage submersible hydraulic end
Caprari E4XD Series
Suitable for installation in wells and boreholes
Designed for water lifting and distribution applications
Available in various flow rate and head configurations
High reliability and durability over time
Compatible with suitable submersible motors
Supplied without submersible motor

Construction Materials

The hydraulic ends of the Caprari E4XD series are made with selected materials to offer high mechanical resistance and a long lifespan.

Depending on the model and configuration, the main components can be made with:

Pump body and structural components: high-strength metallic materials
Impellers: wear and corrosion-resistant materials
Diffusers: high-strength technical materials
Shaft: stainless steel
Fastening components: stainless steel
Rings and wear components: selected materials to ensure reliability and durability
Seals: elastomeric materials suitable for contact with water

Note: Actual materials may vary depending on the specific model and pump configuration. For detailed information, refer to the technical documentation of the individual model.

Technical Data

The performance of the hydraulic end varies depending on the selected model.

For each variant, the following data will be available:

Flow rate
Head
Number of stages
Matchable motor power
Power in kW and HP
Diameter and connection type
Main dimensions

Included

Caprari E4XD series submerged hydraulic end

Not included

Submersible motor
Electric cable
Installation accessories and components, unless otherwise indicated

Applications

The Caprari E4XD series is suitable for numerous water pumping applications, including:

Agricultural irrigation
Water supply
Artesian wells and boreholes
Water lifting
Civil systems
Industrial systems
Water distribution and pressurization systems

Important Before Purchase

Before purchasing the hydraulic end, it is advisable to verify:

Compatibility with the submersible motor
The required flow rate of the system
The necessary head
The characteristics of the well or borehole
The installation diameter
The compatibility of materials with the liquid to be pumped

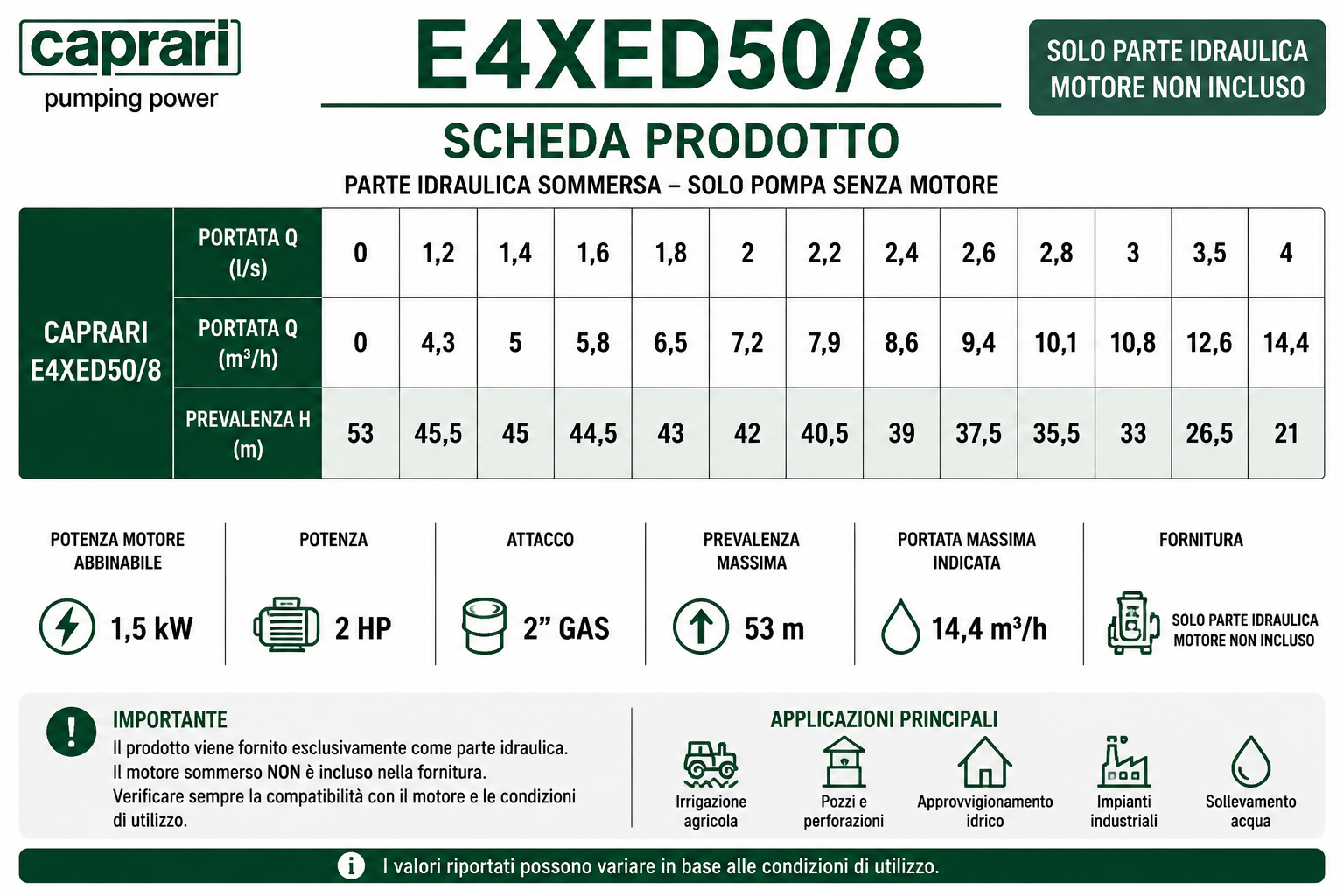

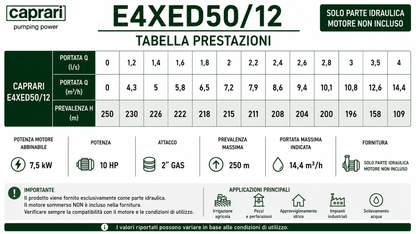

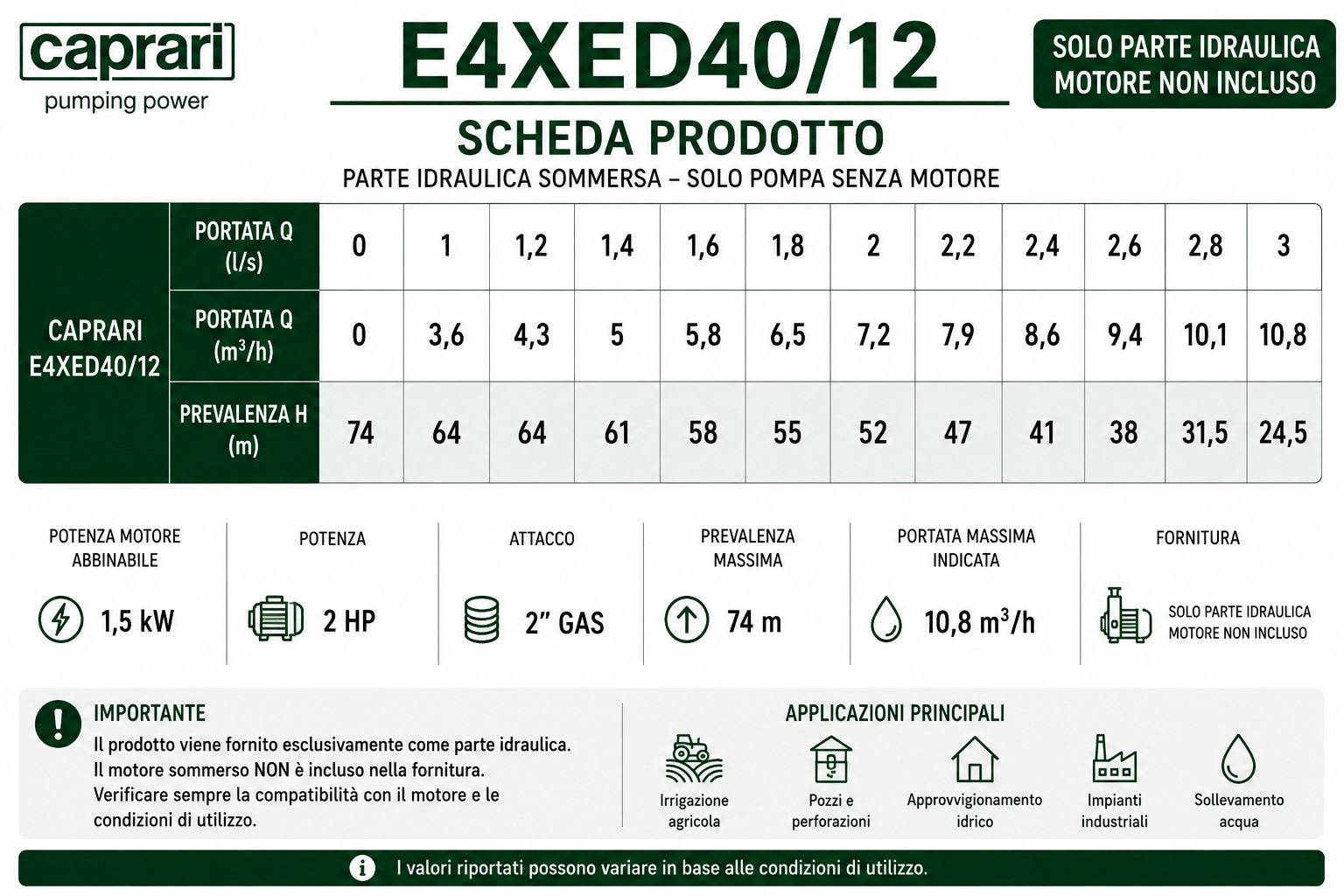

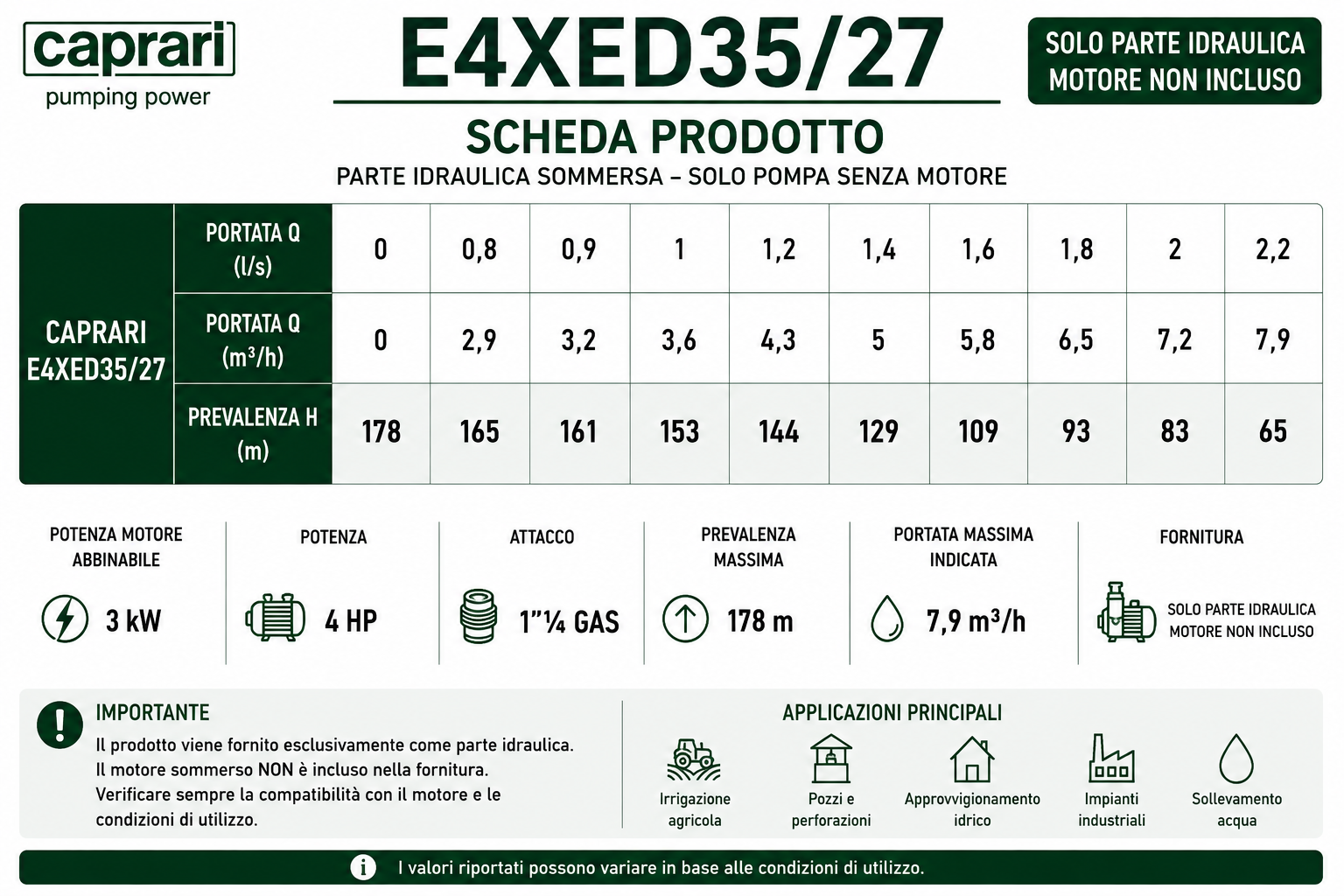

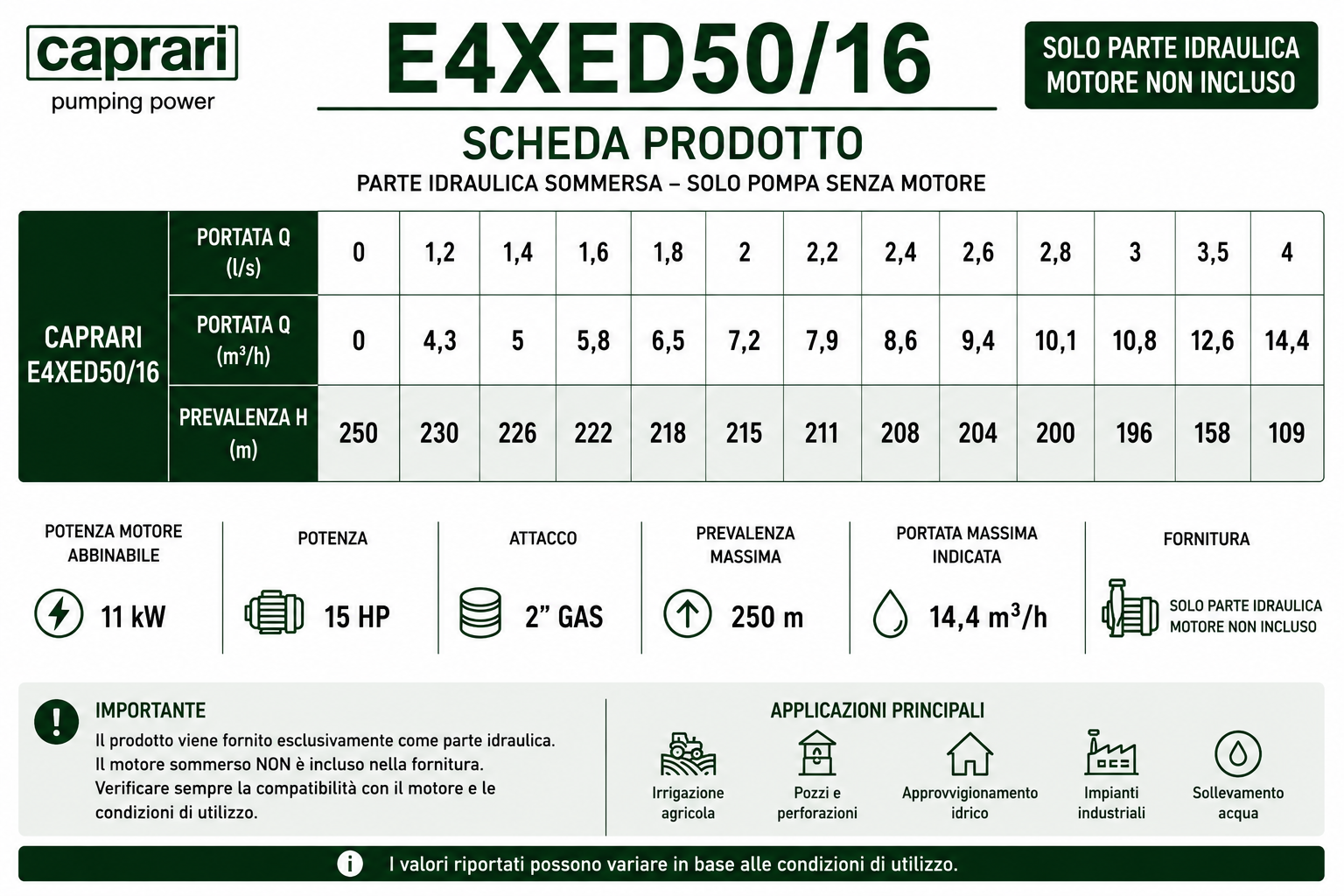

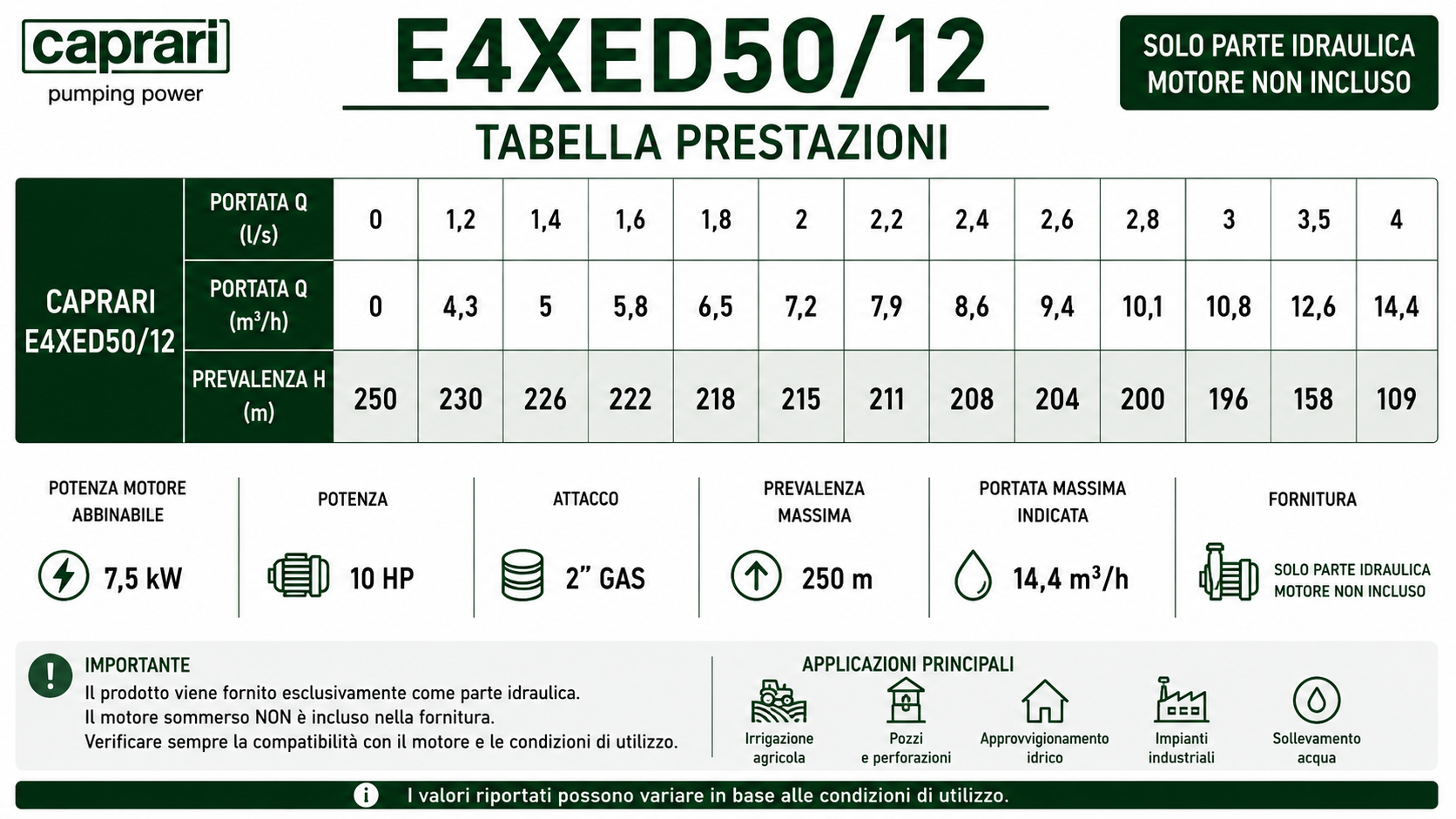

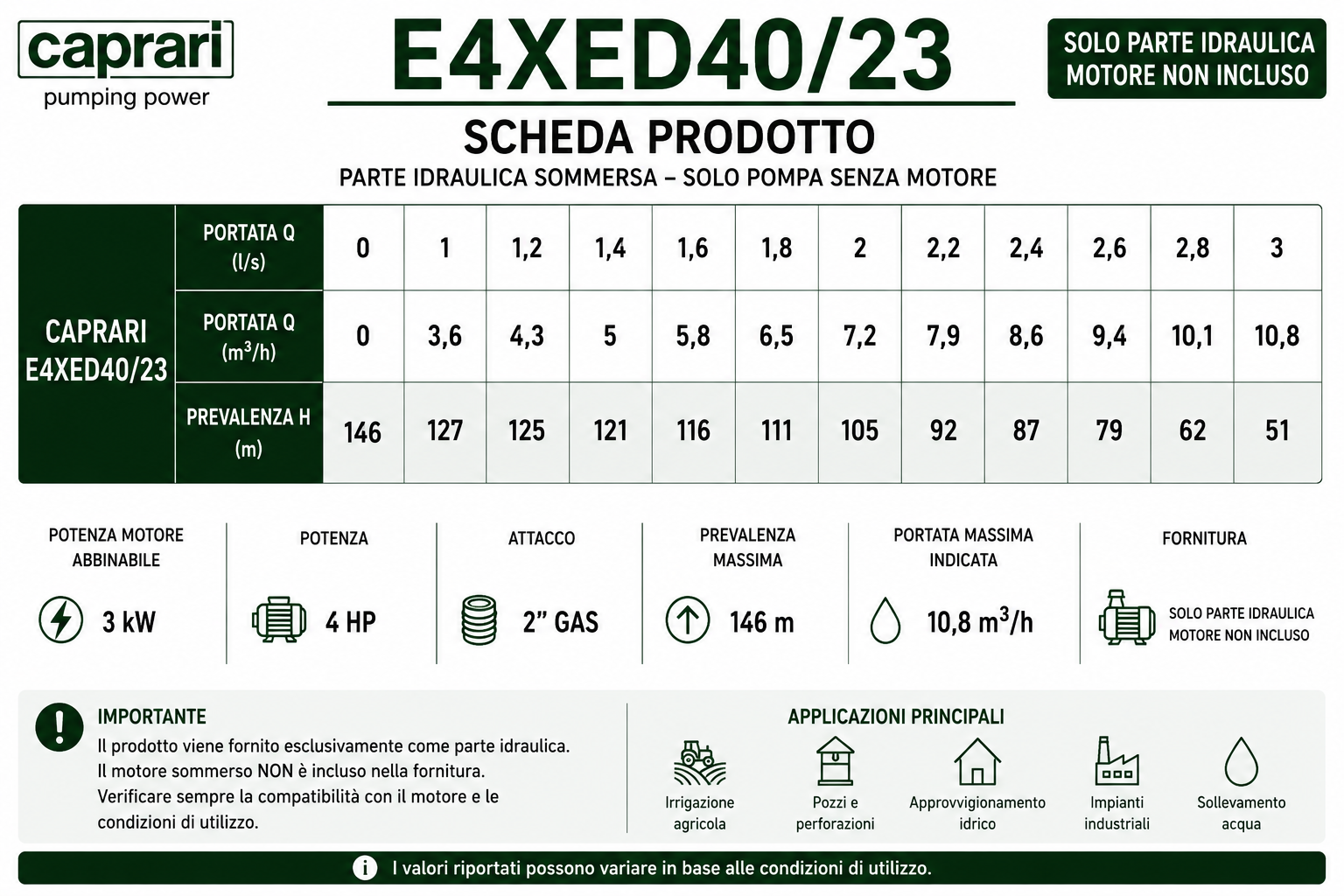

To choose the most suitable model for your needs, you can consult the relevant performance table.
