NTN 6305 Deep Groove Ball Bearing 25x62x17 mm
NTN 6305 Deep Groove Ball Bearing 25x62x17 mm
🚚Fast shipping throughout Italy 🔒Secure payments with protected methods 📞Customer support before and after purchase
Couldn't load pickup availability
The NTN 6305 bearing is a single-row deep groove ball bearing, designed for applications requiring high radial load capacity and good performance even with moderate axial loads in both directions.
Belonging to the 63 series, it offers superior load capacity compared to the 62 series, making it ideal for industrial machinery, electric motors, pumps, and transmission components.
It ensures low friction, quiet operation, and a long service life.
⚙️ Key Features
✔ Deep groove ball bearing
✔ Single row of balls
✔ Heavy-duty series (63)
✔ High radial load capacity
✔ Supports moderate axial loads in both directions
✔ Low friction and reduced noise
✔ Suitable for high rotational speeds

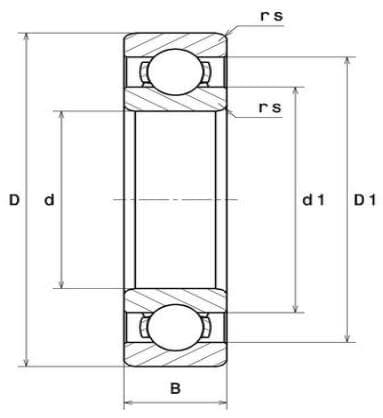

📏 Technical Specifications
| Code | Value | Description |
|---|---|---|
| d | 25 mm | Bore diameter |
| D | 62 mm | Outer diameter |
| B | 17 mm | Width |
| rₛ | 1.1 mm | Minimum chamfer radius |
| Radial clearance | CN | Normal clearance |
| Weight | 0.32 kg | Approximate weight |
| Type | Deep groove ball | Single row |
| Brand | NTN | — |
🏭 Common applications
-
Electric motors
-
Pumps and fans
-
Gearboxes
-
Industrial transmissions
-
Agricultural machinery
-
Machining equipment
